Why Fixed Gas Detection Is Critical In Wastewater Treatment Plants

Overview

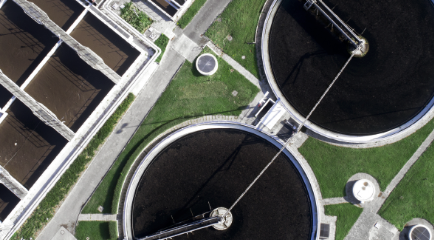

Water and wastewater facilities operate in some of the harshest industrial environments imaginable. Between confined spaces, corrosive atmospheres, combustible gases, and toxic chemical exposure, maintaining safe operations requires more than process control alone. Facilities need continuous visibility into atmospheric conditions to help protect personnel, maintain compliance, and reduce operational risk.

That is where Fixed Gas Detection systems become essential.

Throughout wastewater treatment processes, facilities commonly encounter hazardous gases such as hydrogen sulfide (H₂S), methane, chlorine, sulfur dioxide, carbon monoxide, and oxygen-deficient atmospheres. These hazards can develop in wet wells, lift stations, digesters, pumping stations, sludge handling systems, and chemical storage areas, often without visible warning signs.

Hydrogen sulfide alone presents both toxicity and corrosion concerns, while methane generated during digestion processes introduces serious explosion risks. Add confined space entry requirements and increasingly strict environmental regulations, and continuous gas monitoring becomes a critical layer of plant protection.

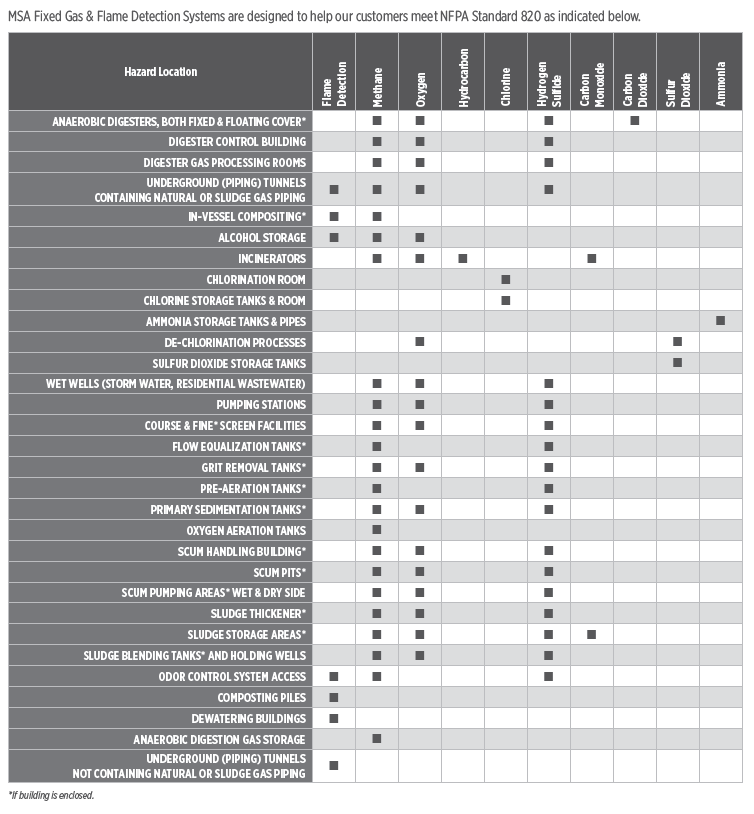

Built Around NFPA 820 Compliance

The NFPA 820 standard establishes fire and explosion protection requirements for wastewater treatment and collection facilities, including pumping stations, treatment plants, sludge handling facilities, and chemical processing areas.

At the same time, OSHA sewer entry guidelines require atmospheric monitoring for oxygen deficiency, combustible gases, hydrogen sulfide, and carbon monoxide in many confined space applications.

Modern Gas Detection systems are designed to help facilities meet these safety requirements while improving operational awareness throughout the plant.

Common Areas Requiring Gas Detection

Wastewater plants contain numerous hazardous locations where continuous monitoring is recommended or required. Wet wells and lift stations often require methane, H₂S, and oxygen monitoring due to gas buildup and poor ventilation. Digesters and sludge handling systems introduce combustible gas hazards, while chlorination rooms and sulfur dioxide storage areas require toxic gas detection.

Other critical monitoring points commonly include:

• Headworks buildings
• Pumping stations
• Sludge storage areas
• Odor control systems
• Underground piping tunnels
• Composting and dewatering areas

Because each process area presents different atmospheric risks, wastewater facilities often require multiple gas detection technologies working together across the site.

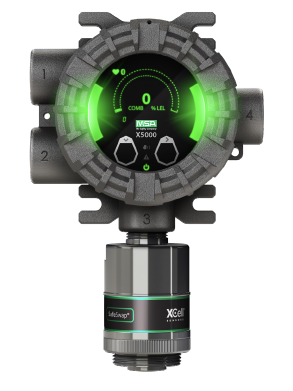

ULTIMA® X5000 Gas Transmitter

The ULTIMA X5000 Gas Transmitter is designed for demanding industrial applications where reliability and uptime are critical. Built with corrosion-resistant stainless steel construction, the X5000 is well suited for harsh wastewater environments exposed to moisture, chemicals, and washdown conditions.

The transmitter features an OLED display with bright status LEDs for visibility, along with an intuitive touch-button interface for tool-free operation. MSA's TruCal® technology continuously monitors sensor health and compensates for environmental drift, helping reduce unnecessary maintenance and calibration frequency.

One of the standout advantages of the X5000 is its SafeSwap® capability, allowing technicians to replace sensors without shutting down the instrument. Combined with dual sensor capability and Bluetooth® connectivity for remote setup and diagnostics, the X5000 provides a modern approach to gas detection in critical wastewater applications.

TG5000 Gas Monitor

The TG5000 Gas Monitor provides an economical and flexible solution for monitoring common wastewater gases including hydrogen sulfide, carbon monoxide, chlorine, combustible gases, and oxygen deficiency or enrichment.

Designed specifically for water and wastewater applications, the TG5000 supports multiple mounting configurations and can operate using either AC or DC power. Its integrated alarm relays, LED indicators, push-button calibration, and optional battery backup make it a practical solution for facilities looking to improve safety without unnecessary complexity.

The TG5000 is commonly applied in lift stations, pumping facilities, and treatment buildings where dependable gas monitoring and local alarming are required.

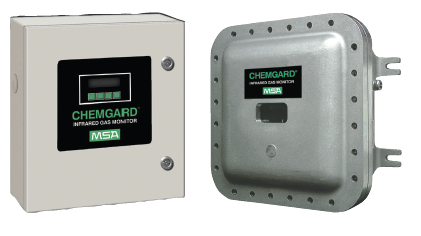

Chemgard Photoacoustic Infrared Gas Monitor

For applications requiring highly sensitive toxic gas monitoring, the Chemgard Photoacoustic Infrared Gas Monitor provides ppm-level detection for a wide variety of gases used or generated throughout wastewater treatment processes.

The Chemgard system is particularly valuable for monitoring methanol, VOC hydrocarbons, solvents, and other toxic compounds associated with wastewater collection systems and industrial discharge streams. The system is capable of monitoring hazardous classified locations and can be expanded to sample up to eight locations with multiple alarm levels.

This makes the Chemgard platform an ideal solution for facilities requiring advanced toxic gas monitoring, environmental compliance support, or fuel leak detection in sensitive areas.

A Critical Layer of Protection

Fixed Gas & Flame Detection systems have become an essential component of modern wastewater facility operations. Beyond helping facilities comply with OSHA and NFPA requirements, these systems provide operators with real-time visibility into atmospheric hazards that could otherwise threaten personnel safety, process reliability, and environmental compliance.

As wastewater infrastructure continues to evolve, facilities are increasingly investing in smarter, more connected Gas Detection technologies that can withstand harsh environments while delivering reliable long-term performance.
