Vortex Flowmeters: The Ideal Solution for Steam Flow Measurement

Posted by TechStar on Sep 3, 2024 3:05:00 PM

Vortex flowmeters are highly versatile devices that can measure the flow of liquids, gases, and steam across a wide range of temperatures and pressures. Their unique advantages make them particularly well-suited for measuring steam flow, offering benefits over other types of flowmeters.

Why Steam Flow Measurement Matters

Steam is widely used as a high-temperature, high-pressure heat medium across various industries. In chemical plants, it's essential for heating, distillation, and concentration. In biotechnology, food, and pharmaceutical facilities, steam is used for sterilization, disinfection, and cleaning. Additionally, it is a critical component in air conditioning systems in semiconductor plants and district heating/cooling plants.

There are two main types of steam: saturated and superheated. Saturated steam has good thermal efficiency but is challenging to maintain in a saturated state due to pressure loss and heat radiation during transportation. As a result, steam is often supplied in a superheated state at higher temperatures and pressures. Because vortex flowmeters can accurately measure high-temperature, high-pressure steam—including superheated steam—they are the preferred choice for steam flow measurement at many facilities.

Yokogawa’s VY Series Vortex Flowmeters: Advanced Technology for Steam Measurement

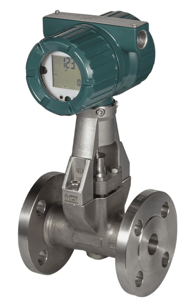

Yokogawa's VY Series of vortex flowmeters stands out due to its wide measurable flow range, capable of handling connection sizes of up to 400 mm. They are also designed to measure fluids at high temperatures of up to 450°C and high pressures up to ASME Class 1500. Beyond their robust construction, these flowmeters offer remote maintenance and self-diagnostic functions, which help ensure efficient upkeep, long-term stability of plant operations, and improved production efficiency.

No alt text provided for this image

Advantages of Using Vortex Flowmeters for Steam Measurement

Here are some key benefits of using vortex flowmeters, specifically when compared to traditional orifice flowmeters (differential pressure flowmeters) commonly found in many facilities:

1. Wide Rangeability to Accommodate Fluctuating Steam Flow Rates

Orifice flowmeters typically have a rangeability of around 5:1, leading to potential errors depending on the measurement range. In contrast, the VY Series vortex flowmeters have a rangeability of 80:1, offering a broader measurement range with consistent accuracy. This superior rangeability allows them to handle steam flow rates that may vary seasonally or due to changes in operating load.

2. Low Pressure Loss for Stable Operation

Orifice flowmeters measure flow rates by detecting the differential pressure created by the orifice (throttle valve), which can result in significant pressure loss. This loss impacts steam quality and can lead to higher costs due to energy inefficiency. Vortex flowmeters, on the other hand, experience pressure loss due to the vortex shedder bar, but this loss is significantly lower than that of orifice flowmeters. Reduced pressure loss helps maintain steam quality and supports stable plant operation.

3. No Mechanical Moving Parts, Less Prone to Failure

While orifice flowmeters are relatively easy to maintain, they consist of multiple components such as an orifice (throttle valve), impulse piping, a three-valve manifold, and condensate pots, all of which require extensive maintenance. Vortex flowmeters feature a simple structure with no moving parts, making them more robust and less prone to failure. This design leads to long-term reliability and lower maintenance costs, which is invaluable for plant operations.

Who Should Consider the VY Series Vortex Flowmeters?

Yokogawa’s VY Series vortex flowmeters are especially beneficial for:

  • Facilities aiming to enhance device efficiency and stability: By using temperature and pressure compensations, these flowmeters provide highly accurate steam flow measurements.
  • Plants looking to reduce downtime through predictive maintenance: Remote monitoring and self-diagnostic capabilities enable predictive maintenance based on real-time device conditions.
  • Organizations focused on minimizing maintenance costs: The component-based maintenance approach reduces the complexity and cost associated with routine maintenance.

Conclusion

Vortex flowmeters, particularly the VY Series from Yokogawa, offer a highly effective solution for steam flow measurement. Their wide rangeability, low pressure loss, and minimal maintenance requirements make them a superior choice for maintaining the efficiency and stability of plant operations. Whether you're looking to improve measurement accuracy, reduce downtime, or cut down on maintenance costs, the VY Series vortex flowmeters provide a reliable and efficient solution for steam flow management in various industrial applications.
