Advanced Combustion Control of Fired Heaters

Features

Efficiency

• Reduce fuel consumption
• Increase throughput

Emissions

• Reduce SCR load
• Reduce pollutants
• NO_x
• CO
• CO₂

Lifecycle

• Tuber hanger life
• Tube life
• SCR catalyst

Safety

• Compliance with API 556
• Hazard preventive functions to control situation before trip fuel
• New layers of protection
  • Real-time fuel density
  • Near real-time combustibles
  • Accurate draft pressure

TDLS8000 Difference

• Measurement in radiant section

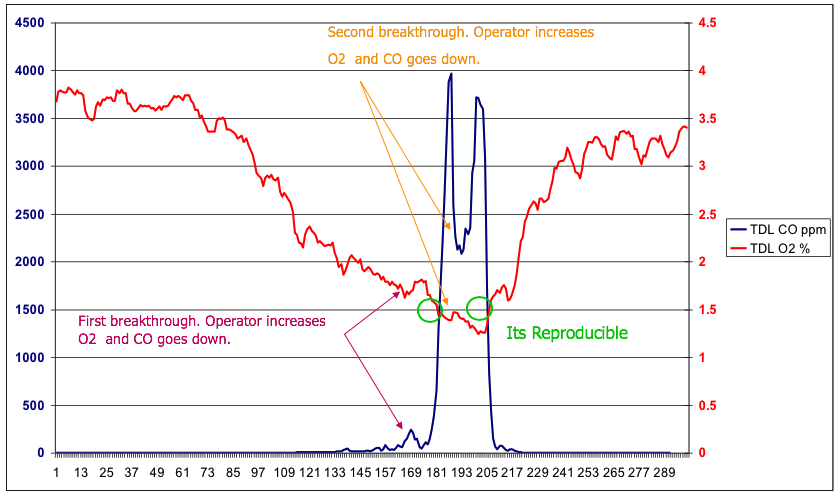

• Fast detection of CO breakthrough
  • Single digit low limit of quantification
• Methane detection
  • LOP for startup safety
• Averaging oxygen across radiant sections
• Solid state device
• Not a potential ignition source

Laser Based Analysis

• Laser based technology is not an ignition source to flue gas and does not require reference air
• Response time is less than 2 seconds
• When controlling a fired heater's air/fuel ratio near the CO breakthrough point, an IR or laser based CO specific measurement is recommended
• Enables advanced combustion control. Oxygen control at less than 1% may be possible.

Stoichiometry 101

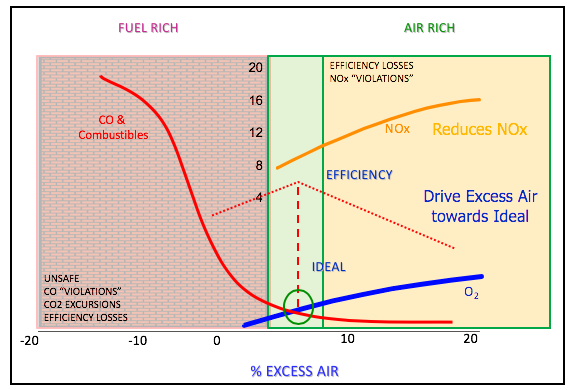

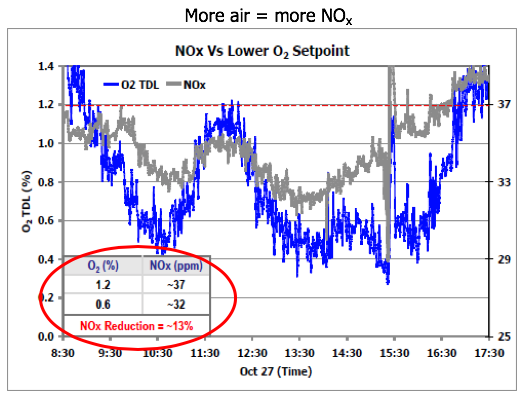

Impact of Air Rich Flue Gas

Impact of Air on Efficiency

• Lowering air equals higher coil outlet temp
  • Reduces firing rate = saves fuel
  • Less emissions
  • Increased throughput
• High convection temperatures = increased coking

Asset Sustainability

• Tubes and hangers designed with minimal thickness
  • lower temperatures increase life
  • Operating design temperatures cause failures

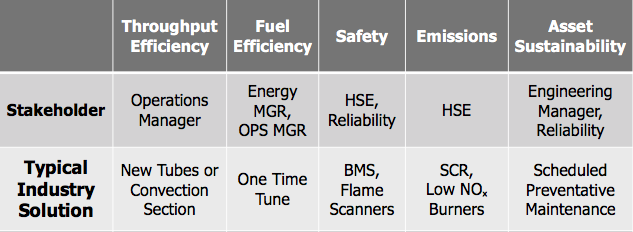

Cross Benefits

Conclusion
