The Upstream Guide To Flare Gas Measurement

Overview

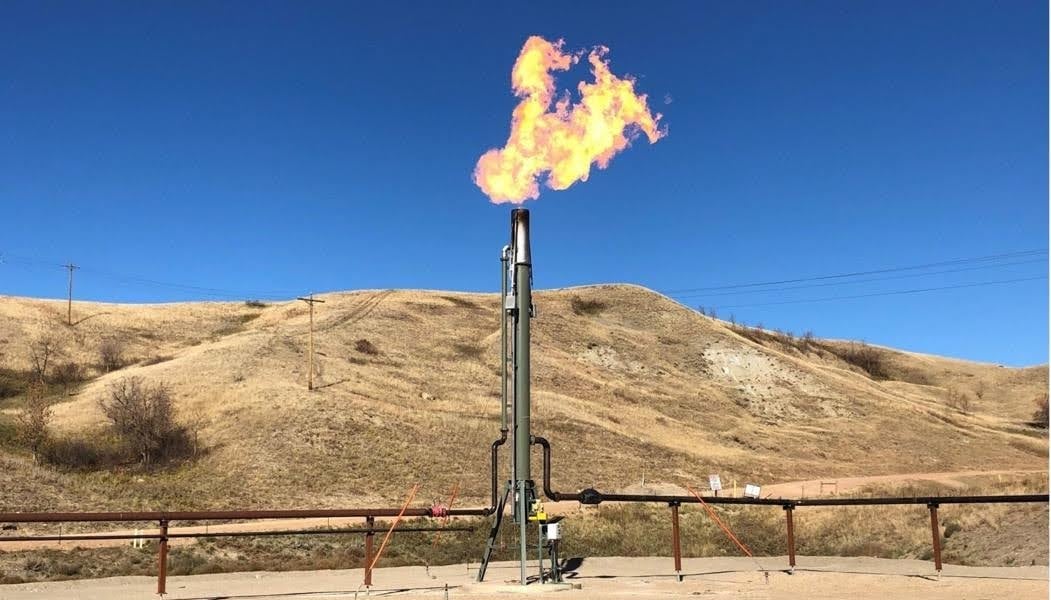

From well pads and tank batteries to Central Production Facilities (CPFs), flare systems play a critical role in safe upstream operations. Whether handling routine venting, pressure relief events, or emergency shutdowns, flares safely combust excess hydrocarbons while protecting personnel, equipment, and the environment.

As emissions regulations tighten and operators place greater emphasis on production efficiency, accurate flare gas measurement has become more important than ever. The challenge is that flare gas is one of the most difficult flow applications in the oilfield, requiring a technology capable of measuring accurately across constantly changing operating conditions.

Why Measure Flare Gas?

Reliable flare gas measurement provides more than regulatory compliance — it delivers valuable operational insight.

Accurate measurement helps operators:

• Support emissions reporting and environmental compliance
• Verify flare system performance
• Reduce unnecessary flaring
• Monitor process upsets
• Improve production visibility
• Support ESG and methane reduction initiatives

Knowing how much gas is being flared allows operators to make informed operational decisions while improving accountability across their facilities.

Why Flare Gas Is So Difficult to Measure

Unlike many process flow applications, flare systems rarely operate under steady conditions.

A single flare header may experience:

• Extremely low flow during normal production
• Sudden, high-volume flow during upset conditions
• Changing gas compositions
• Wide temperature and pressure variations
• Low operating pressures
• Large pipe diameters
• Harsh outdoor environments

These changing conditions can make traditional flow measurement technologies difficult to apply, particularly when accuracy is required across both normal operating conditions and emergency events.

Why Thermal Mass Flow?

Thermal mass flow technology measures the mass flow of gas directly, making it particularly well suited for flare gas applications.

Instead of calculating flow from pressure or velocity, thermal mass flow meters determine flow based on the cooling effect the moving gas has on a heated sensor. This allows the meter to respond accurately over a broad range of operating conditions without requiring additional compensation.

Key advantages include:

• Direct mass flow measurement
• No external pressure compensation
• No external temperature compensation
• Excellent sensitivity at very low flow rates
• Wide turndown capability
• Minimal pressure loss
• Low maintenance requirements

These characteristics make thermal mass flow one of the most reliable technologies available for measuring flare gas in upstream operations.

The Importance of Wide Turndown

One of the defining characteristics of flare gas applications is the enormous difference between routine operation and an upset event.

During normal production, flare flow may be minimal. During an emergency pressure relief event, flow can increase dramatically within seconds.

A flow meter must accurately capture both conditions without sacrificing performance.

Thermal mass flow technology offers exceptional turndown, allowing one instrument to measure both extremely low and high flow rates while maintaining measurement accuracy throughout the operating range.

Typical Upstream Applications

Thermal mass flow measurement is commonly used on:

• Tank battery flare headers
• Well pads
• Central Production Facilities (CPFs)
• Vapor Recovery Unit (VRU) backup flares
• Separator relief systems
• Compressor station flare headers
• Gas gathering facilities
• Enclosed combustors

These applications require dependable measurement under changing process conditions where reliability is essential.

Selecting the Right Flow Technology

Not every flow technology is designed for flare service.

When evaluating a flare gas flow meter, consider:

• Can it accurately measure very low flow rates?
• Can it handle upset conditions without losing accuracy?
• Does it require pressure or temperature compensation?
• Is it suitable for changing gas compositions?
• Will it provide reliable long-term performance in outdoor installations?
• Is maintenance minimized without sacrificing performance?

Answering these questions early helps ensure reliable measurement while reducing operating costs over the life of the installation.

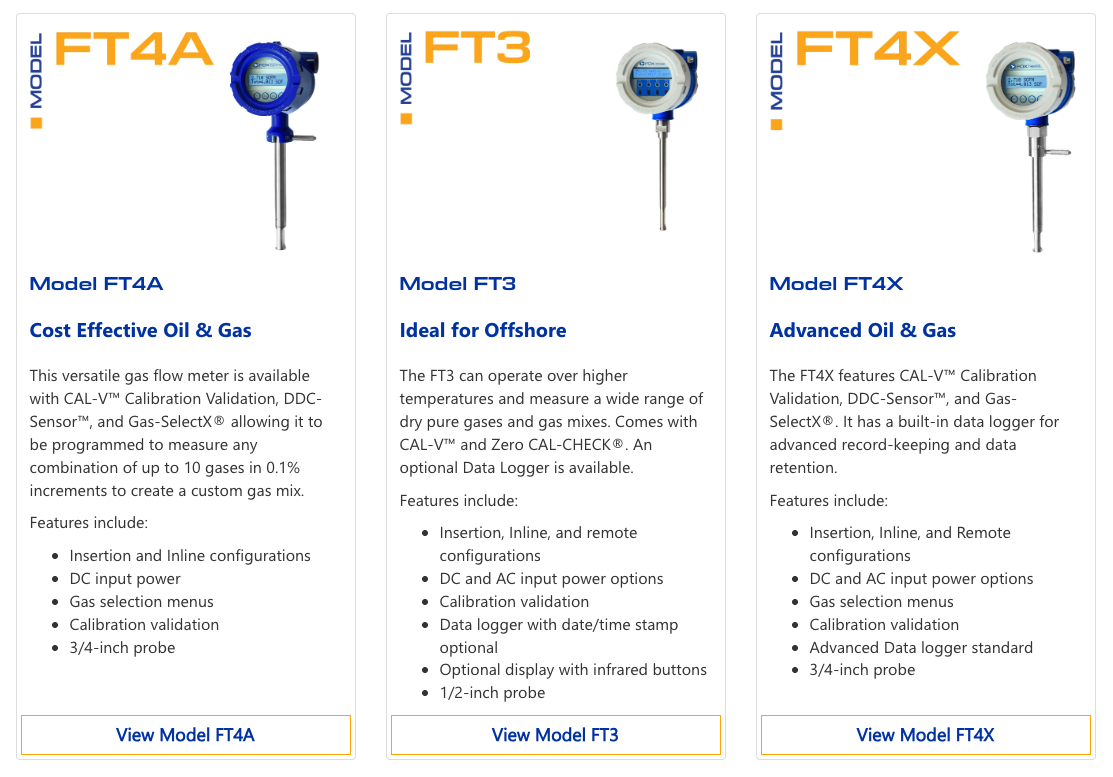

TechStar Solution

Selecting the right technology is just the first step.

TechStar helps upstream operators evaluate flare gas applications, specify the appropriate flow measurement technology, and support installations with application expertise and local technical resources. Whether you're improving emissions reporting, upgrading aging instrumentation, or designing a new production facility, our team can help identify the right solution for your process.
