Oxygen Monitoring In Vapor Recovery Units (VRUs)

Overview

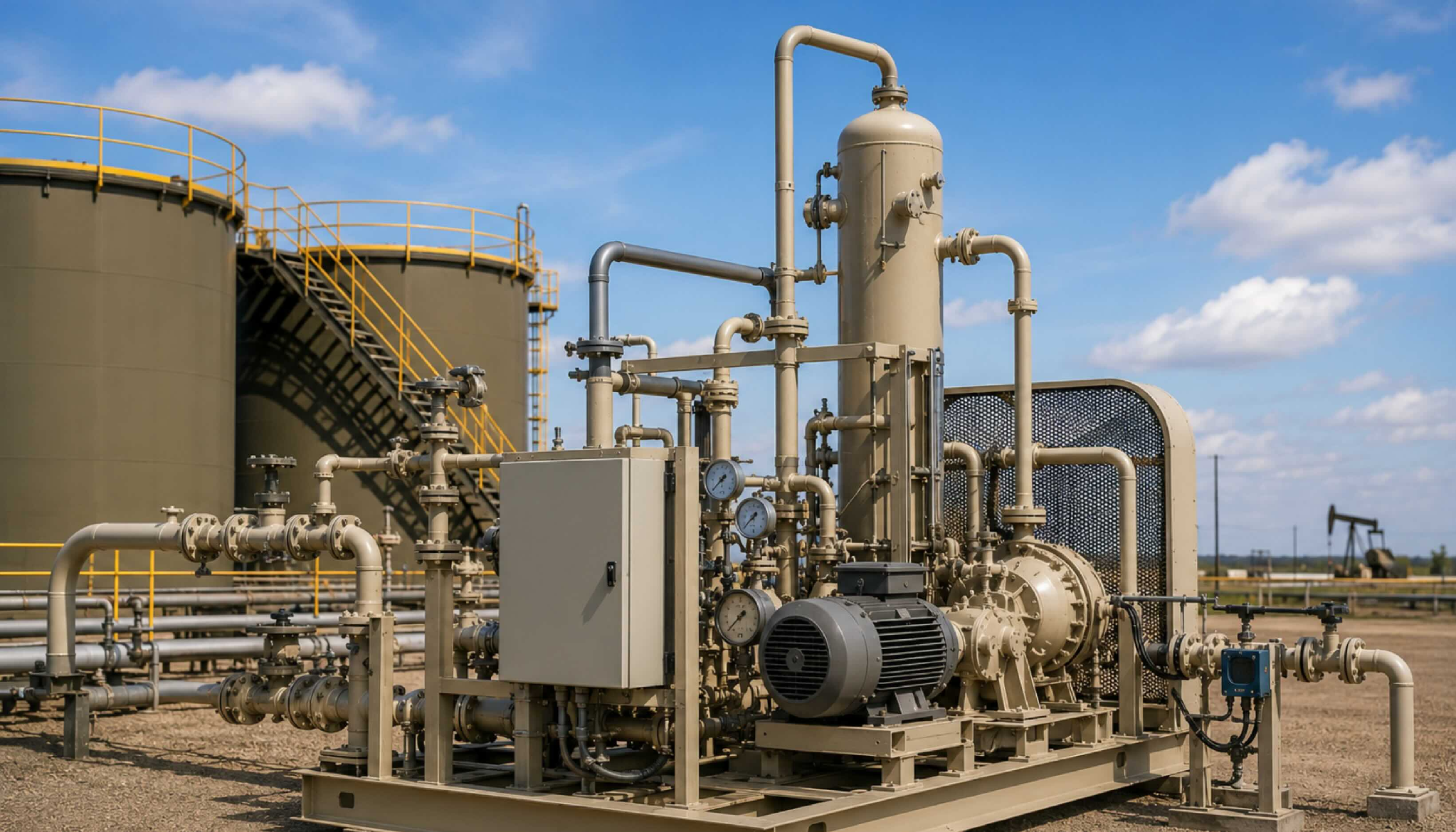

Vapor Recovery Units (VRUs) have become a critical part of modern upstream oil & gas operations. By capturing hydrocarbon vapors from crude oil storage tanks, operators can reduce emissions, recover valuable product, and meet increasingly stringent environmental regulations.

While hydrocarbon recovery is the primary objective, oxygen contamination within the recovered gas stream presents its own set of operational challenges. Reliable oxygen measurement allows operators to identify air ingress before it impacts product quality, processing, or pipeline compliance.

Why Monitor Oxygen?

Even small amounts of oxygen entering a VRU can create significant operational issues.

Potential impacts include:

• Reduced heating value (BTU) of recovered gas
• Corrosion caused by oxygen reacting with H₂S and CO₂
• Reduced efficiency of downstream amine sweetening systems
• Increased combustion and flammability risks
• Failure to meet midstream or pipeline oxygen specifications

Many gas processors require oxygen concentrations below 10 ppm before accepting gas into the sales pipeline.

Where Oxygen Enters the Process

Air intrusion can occur at several locations throughout the vapor recovery system, including:

• Tank thief hatches
• Pressure relief valves
• Manways and access covers
• Compressor seals
• Flanged connections
• Vacuum conditions within storage tanks

Continuous oxygen monitoring provides early indication of these issues before they affect production.

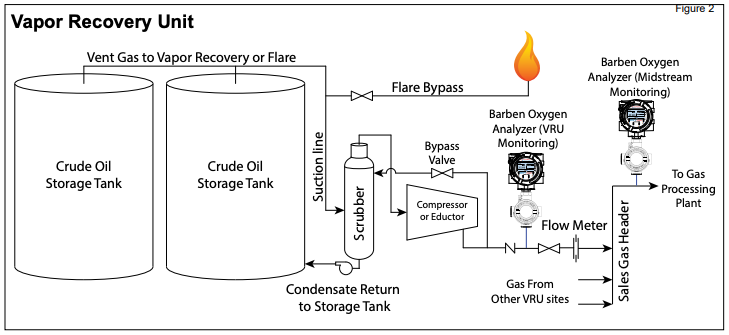

Typical Vapor Recovery Process

A typical upstream VRU includes:

• Crude oil storage tanks
• Vapor collection manifold
• Scrubber to remove entrained liquids
• Compressor or eductor
• Gas flow meter
• Sales gas pipeline

Oxygen analyzers are commonly installed on the recovered gas stream leaving the VRU to continuously verify gas quality before entering downstream processing.

The Challenge With Traditional Oxygen Sensors

Measuring oxygen at parts-per-million levels in hydrocarbon-rich gas is difficult. Traditional sensing technologies often struggle because of:

• Sensor drift
• Frequent calibration requirements
• Limited sensor life
• Cross-sensitivity to process gases
• Reduced accuracy at very low oxygen concentrations

Selecting the proper analyzer technology is critical for dependable long-term operation.

Optical Oxygen Measurement Advantages

Optical oxygen analyzers offer several benefits for VRU applications:

• Accurate low-ppm oxygen measurement
• Fast response time
• Minimal maintenance
• No consumable electrochemical cells
• Stable long-term performance
• Improved reliability in demanding upstream environments

These advantages help reduce maintenance while providing confidence that recovered gas meets quality requirements.

The TechStar Solution

TechStar provides oxygen analyzers designed specifically for demanding upstream gas applications. Whether you're installing a new VRU or upgrading an existing oxygen measurement system, our specialists can help specify the right analyzer for your process and ensure reliable, low-maintenance operation.

Need help selecting an oxygen analyzer for your Vapor Recovery Unit? Contact TechStar to speak with one of our analytical measurement specialists.
